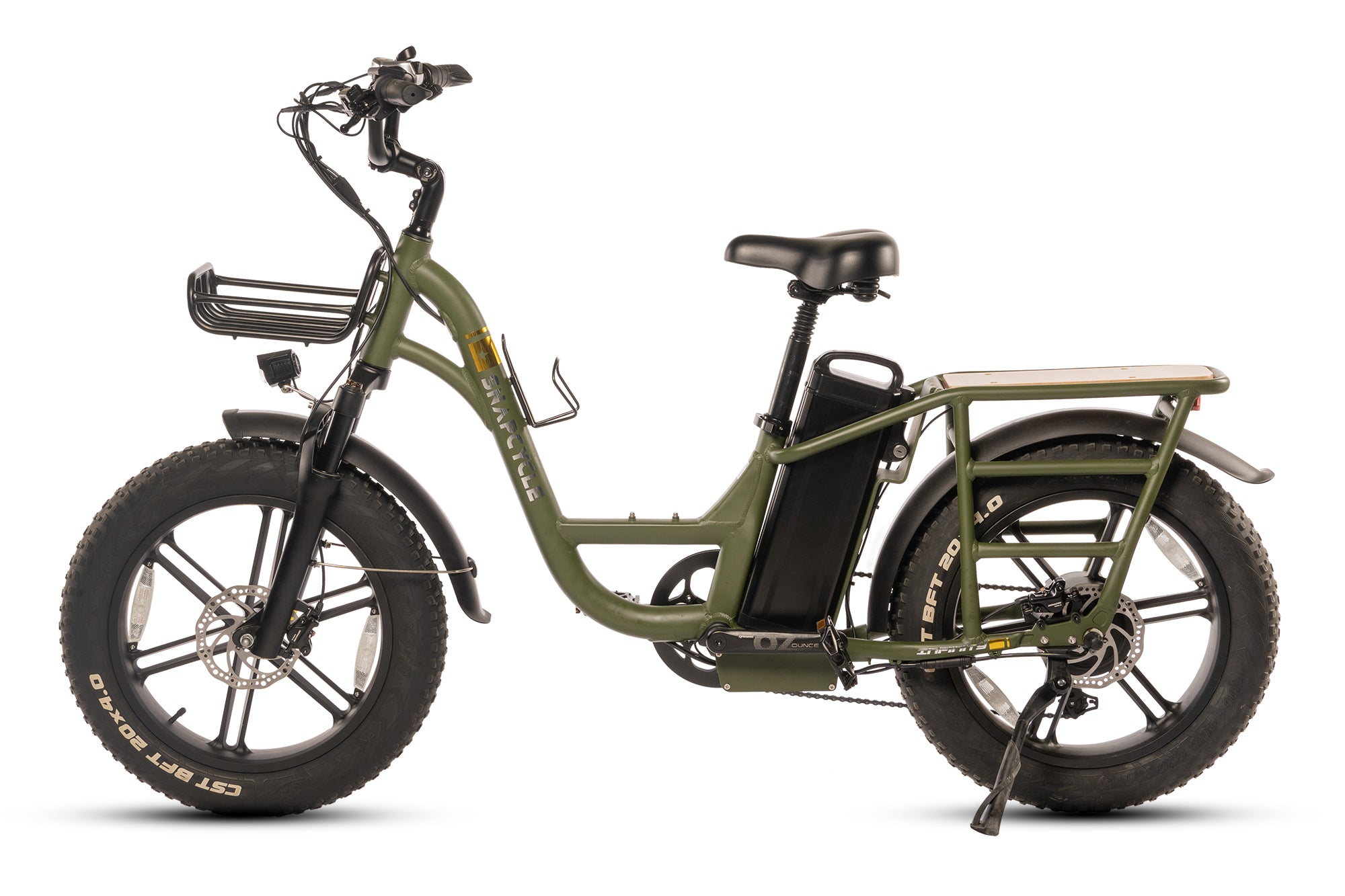

Snapcycle Infinity E-Bike
Snapcycle Infinity E-Bike - Army_Green is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Free Shipping
Free Shipping
Free shipping to the lower 48 states in the US. We do not ship to PO boxes or APO.
2-Year Warranty
2-Year Warranty
All Snapcycle bikes cover a 2-Year warranty for the original owner against all manufacturing defects.
14-Day Returns
14-Day Returns
If you don't love it, send it back for a full refund. Return shipping fee applies.
User Manual
User Manual
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Size & Fit
Size & Fit
- A. Total Length 72.8“
- B. Handlebar Height 42.9“-45.7“
- C. Wheelbase 48“
- D. Minimum Seat To Pedal 27.9“
- E. Maximum Extension 5.5“
- F. Chain Stay Length 21.7“
- G. Standover Height 17.7“
- H. Top Tube Length 24.8“
- I. Wheel Diameter 22.8“
- J. Head Tube Length 7.7“
- K. Handlebar Length 27.6“
- Seat-to-Ground Distance 31.8"-36.6"
Specification
Specification
- Battery 48V 15Ah EVE lithium battery
- Range 30~45 Miles
- Electric Bike Class Class 2 (configurable to Class 3)
- Hub Motor 750W brushless geared motor, 1056W Peak
- Charging Time 4 ~ 5 Hours
- Total Payload Capacity 330lbs
- Recommended Rider Heights 5'1" ~ 6'7"
- Charger US standard 3.0 A smart charger, UL Certified
- Controller 48V / 22A 12-Tube
- Display Adjustable-Angle, Backlit, Grayscale 2.2'' LCD, IP67
- Frame Aluminium 6061
- Pedal Assist Intelligent 0~5 level pedal assist
- Weight 78.3lbs
Components
Components
- Brake Calipers TEKTRO HD-E395
- Brake Levers Aluminium alloy comfort grip levers with motor cutoff switch
- Crank Set 48T, 170mm Aluminium Alloy, Double Sided Plastic Guard
- Fender Full coverage front and rear
- Freewheel Shimano TZ50-7 Freewheel
- Pedals Foldable, Wellgo ALuminum Alloy Platform with Reflector
- Seatpost Clamp Quick-Release type
- Front Suspension PARTNER Spring Suspension, 175mm Travel, Lockout and Preload Adjustment
- Rear Suspension Pre-adjusted suspension, GSX-200
- Brake Rotors TEKTRO 160mm front and rear
- Chain KMC chain with 122 chainlinks
- Derailleur7-Speed Shimano Tourney
- Gearing1 x 7 Speed
- HandlebarAluminum Alloy, 680mm Width, 31.8mm Bore
- KickstandHeavy-duty aluminum stand
- RimsAluminum Alloy, 20 inch, Double Wall
- SeatpostAluminum Alloy, 350mm*30.9mm Dia
- ShifterShimano SL-TX50-7R
- Tire20x4" CST BFT Puncture-Resistant
48V 15Ah EVE Lithium Battery
Our batteries are rated 48V-15Ah and are made of EVE 25P 18650 cells, which are renowned for their long lifespans and excellent performance. The battery management system (BMS) complies with EN ISO 13849-1:2015 standards and comes with temperature protection features to enhance its durability and safety. With each charge, you'll get to enjoy up to 45 miles of range on pedal-assist mode, and up to 30 miles on pure electric power mode.
750W Brushless Geared Hub Motor
With 750W sustained, 1056W peak power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.
Hydraulic Disc Brakes
The sensitive dual-piston hydraulic braking system comes with metal-ceramic brake pads, and 180mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.
Half Twist Throttle
The half-twist throttle prevents accidental activation of the electrical motor, protecting you from injuries.
Half Twist Throttle
The half-twist throttle prevents accidental activation of the electrical motor, protecting you from injuries.
Discover Design Advantages
You'll Love These Features On Your Snapcycle Infinity E-Bike
Explore More Powerful
-
![]()
LED Headlight
It's getting dark. Turn your headlight on to illuminate the road ahead.It also helps with your visibility at night.
-
![]()
Shimano Derailleur
High quality shimano gears and derailleurs enable you to maintain a comfortable pedalling speed, regardless of road conditions.
-
![]()
Front and Rear Rack
The front and rear racks are specifically designed for Infinity, providing additional cargo space. They are beautifully crafted from strong, lightweight aluminum for a lifetime of use.
