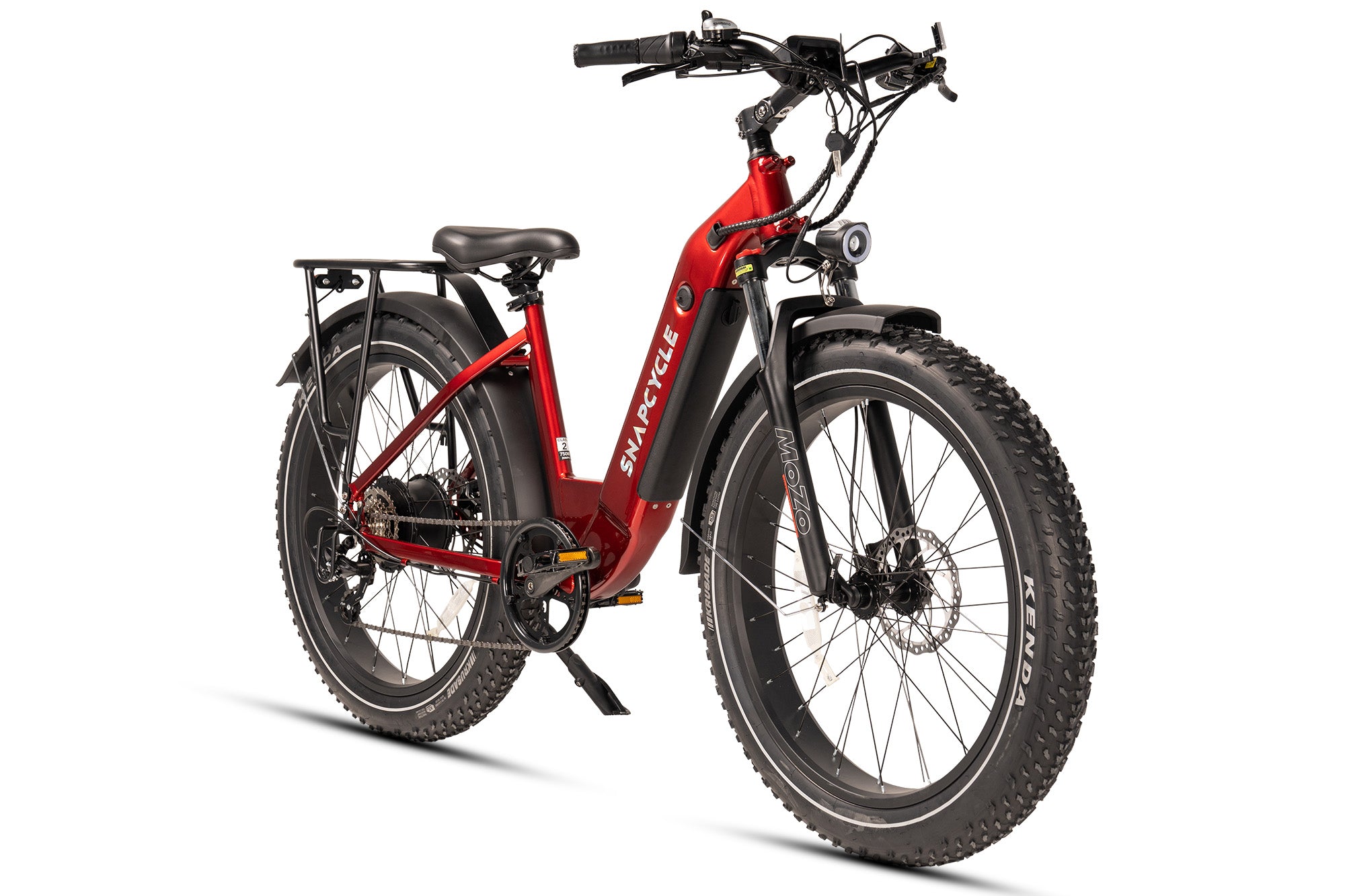

Snapcycle R1 Step-Thru

Step-thru Electric Fat Tire Bike
Regular price
$1,399.00
Sale price
$1,399.00
Regular price
$1,799.00
Sold out
Unit price
per
Shipping calculated at checkout.
In Stock

Ships in 2-3 days from California.

Latest Upgrade: Hydraulic Brakes + Integrated Brake Light

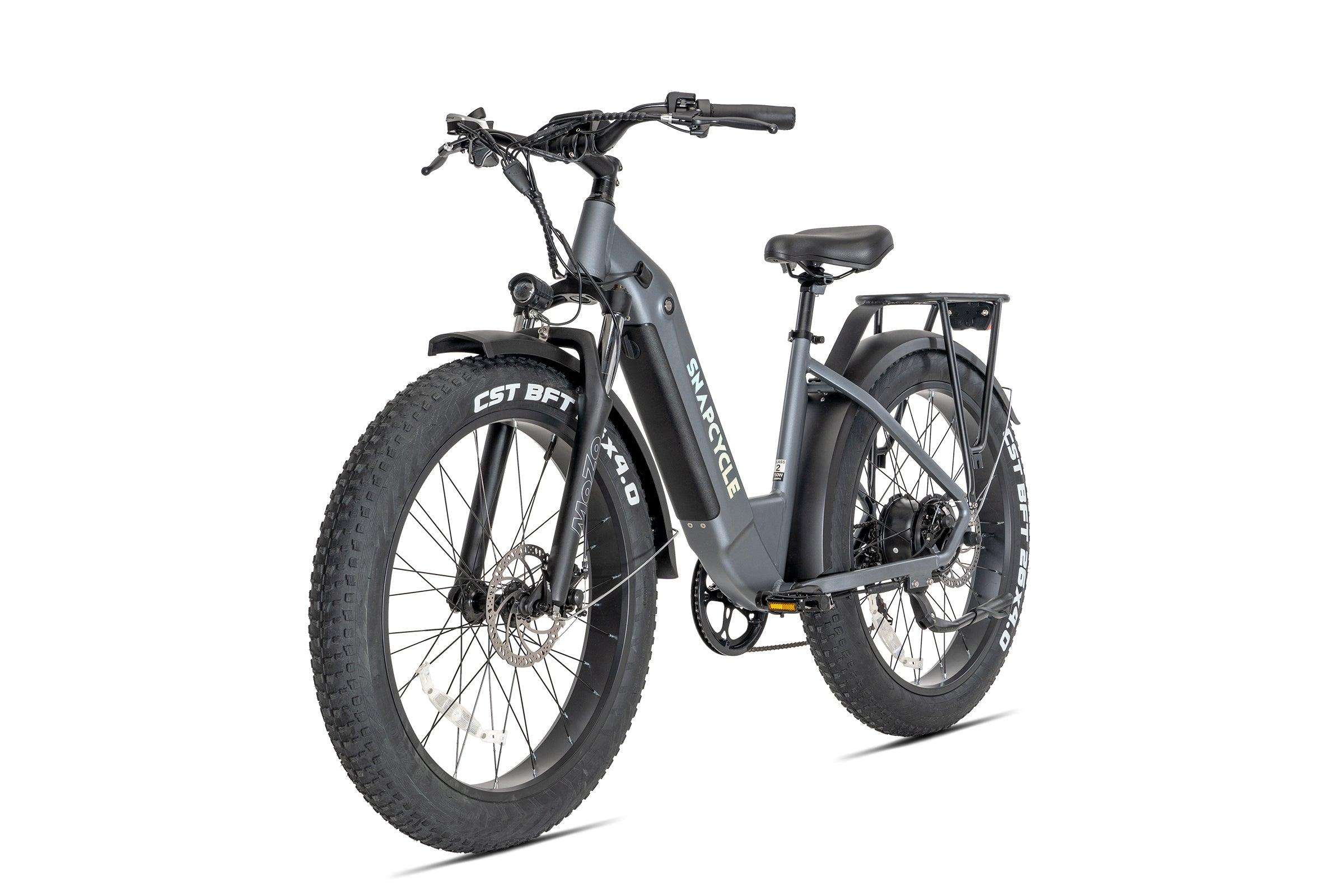

Gray
Red

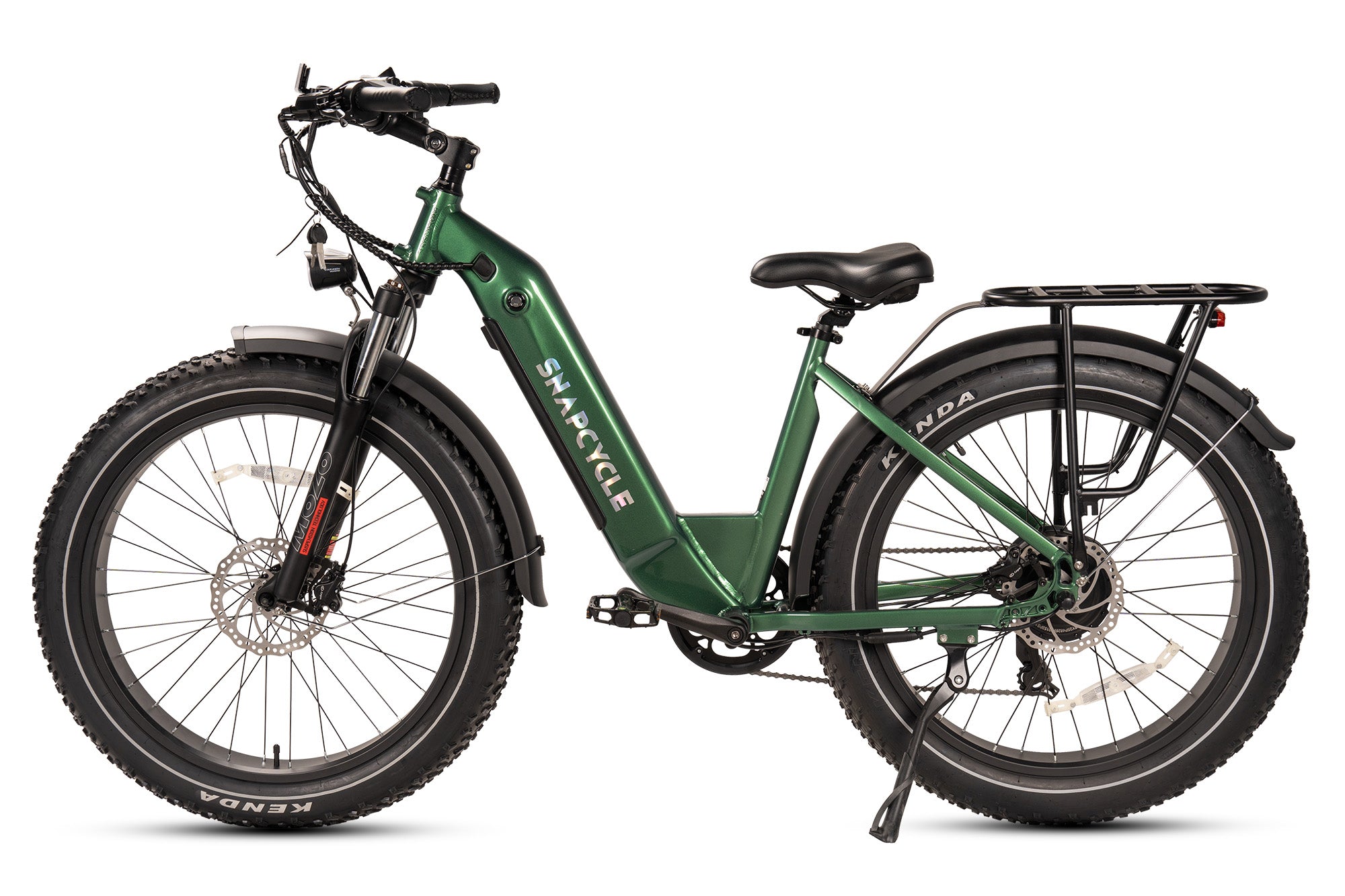

Green

Free Accessories Included

  • Bike Rear Rack

    $89 FREE
  • Full Fenders

    $39 FREE
See What’s more in the box

What's in the box?

We’ve got you covered with essential accessories to kickstart with your new Ebike!

  • Bike Rear Rack

  • Full Fenders

  • Ebike Battery

  • 3.0A Quick Charger

  • Bike Pedals

  • Toolkit

Free shipping to the lower 48 states in the US. We do not ship to PO boxes or APO.

All Snapcycle bikes cover a 2-Year warranty for the original owner against all manufacturing defects.

If you don't love it, send it back for a full refund. Return shipping fee applies.

750 watt

Geared hub motor 1200 watt at peak

45 miles

per charge (estimated)

48V 14Ah

Samsung / LG Lithium-Ion Battery

750W Brushless Geared Hub Motor

With 750W continuous (1200W peak) power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.

48V 14Ah Samsung/LG Lithium-Ion Battery

Our batteries are rated 48V-14Ah and are made of premium Samsung INR18650-35E / LG INR18650-MJ1 cells, which are renowned for their long lifespans and excellent performance. The battery management system (BMS) complies with EN ISO 13849-1:2015 standards and comes with temperature protection features to enhance its durability and safety. With each charge, you'll get to enjoy up to 45 miles of range on pedal-assist mode, and up to 30 miles on pure electric power mode.

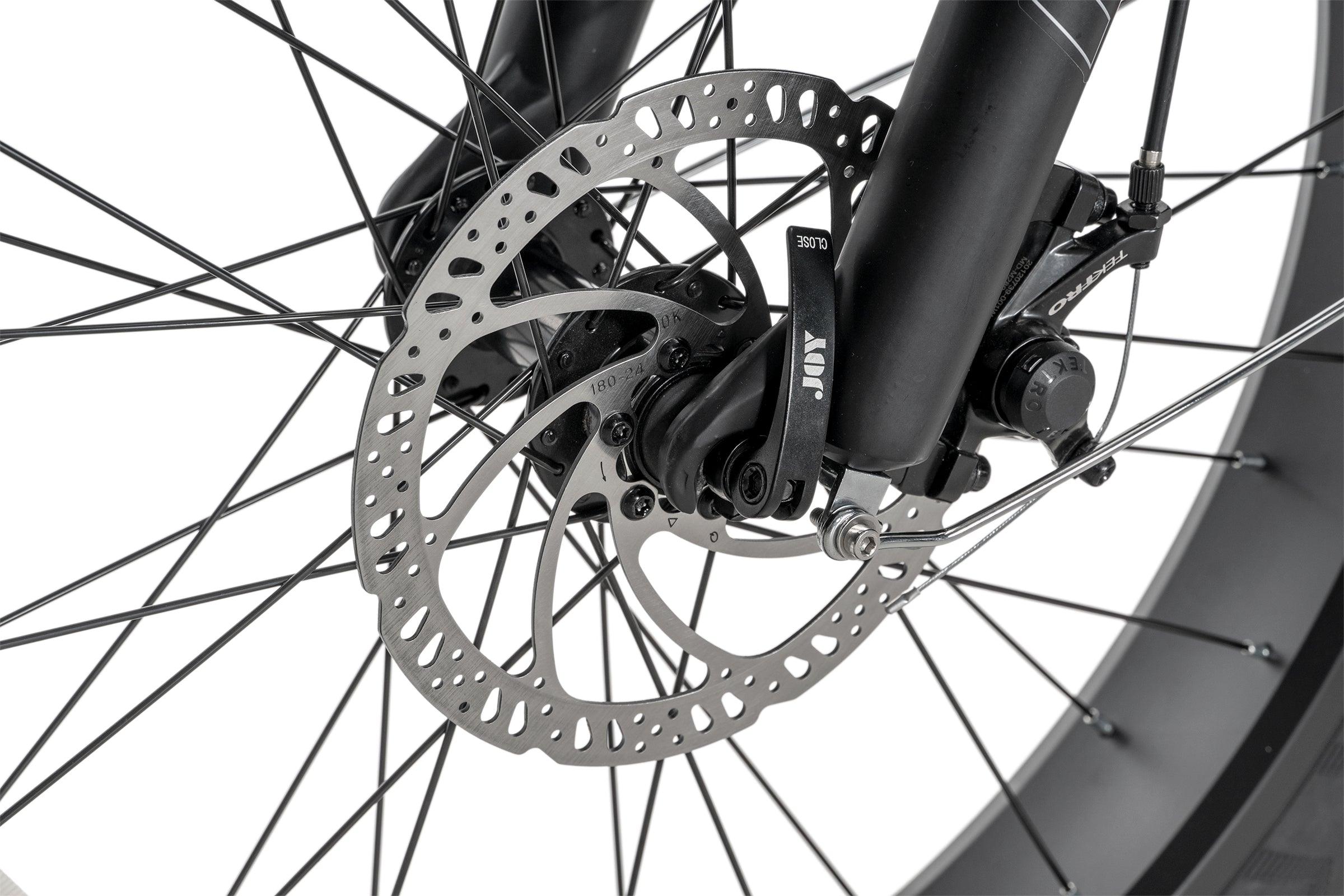

Hydraulic Disc Brakes

The sensitive dual-piston hydraulic braking system comes with metal-ceramic brake pads, and 180mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.

Half Twist Throttle

The half-twist throttle prevents accidental activation of the electrical motor, protecting you from injuries.

Quick & Smart 48V 3 Amp Charger

It only takes less than 5 hours to fully charge the battery, which greatly shortens the time between rides to keep up with the rapid pace of your commuting demands. This fast charger is certified to UL standards and its safety and reliability are guaranteed.

TECHNICAL HIGHLIGHT

You'll love these features on your Snapcycle R1 Step-Thru

Backlit LCD Display

The intuitive display provides real-time information about your ride, including mileage, battery level, speed and power. It also provides diagnostic information to its users.

Front Suspension Fork

The spring suspension fork has 80mm of travel, with preload adjustment and lockout. It is able to dampen the roughness of the terrain, providing a smoother, more enjoyable ride.

Wide Foam Saddle

This foam saddle on the bike is ergonomically designed to ensure a comfortable and fun ride. You can adjust it upwards, downwards, forwards and backwards- find a comfortable position that suits your riding style.

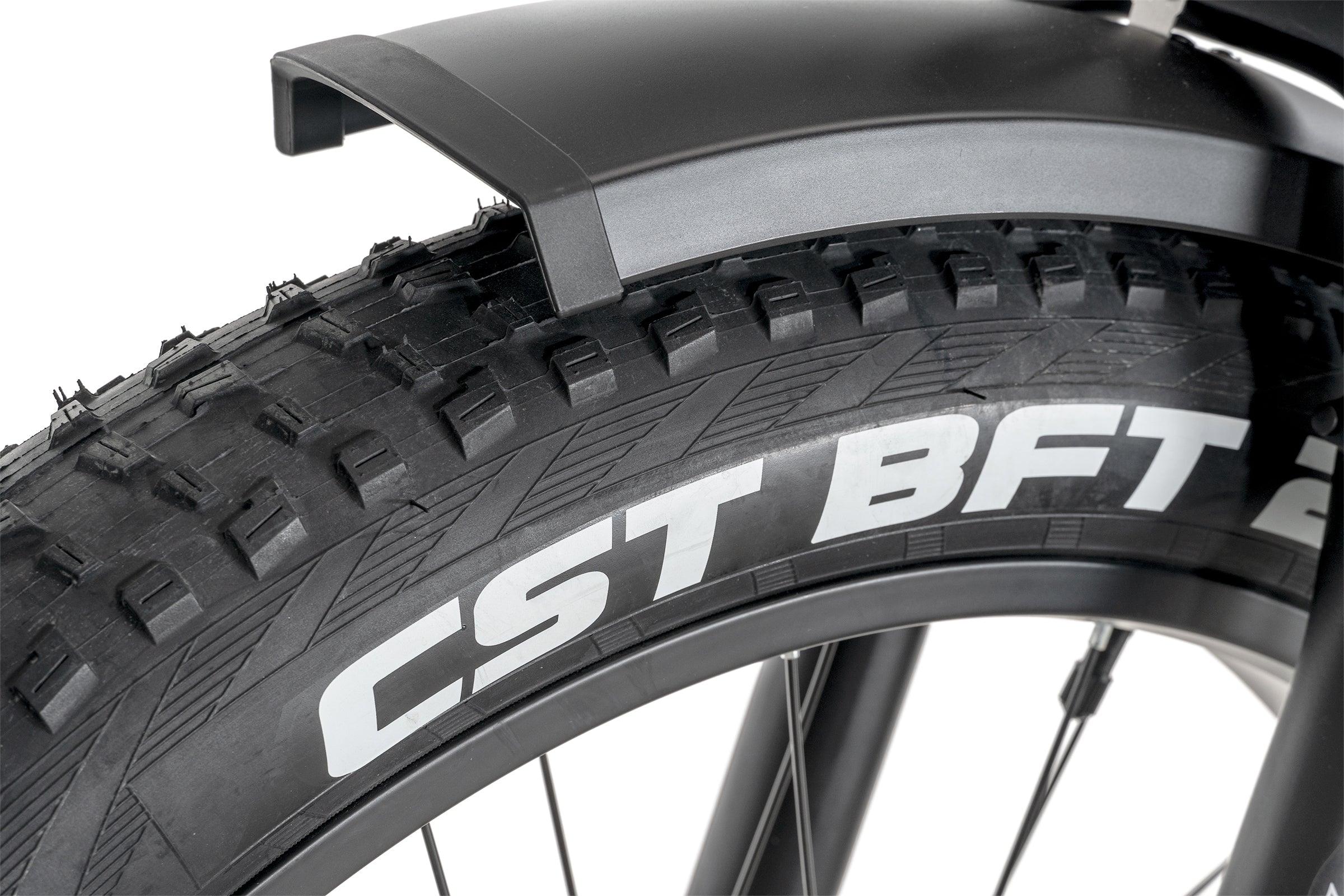

4” Fat Tire

The 4” Fat Tires provide excellent grip and traction on all terrains. Whether it’s mud, sand, gravel, grass, or snow, our fat tires will ensure a smooth and safe riding experience.

LED Headlight

It’s getting dark. Turn your headlight on to illuminate the road ahead. It also helps with your visibility at night.

Control Pad

The control pad has push buttons which allow you to easily control the bike with your left hand while riding. Our bikes also come with a built-in horn.

Fully Integrated Battery

The sleek-looking frame holds an integrated battery that provides you with all the fuel you will need to power your bike through the toughest terrains.

Shimano Derailleur

High quality Shimano gears and derailleurs enable you to maintain a comfortable pedaling speed, regardless of road conditions.

Solid Rear Rack

The sturdy rear rack with a vertical pillar is capable of carrying loads up to 110 lbs. You could bring a pet or a child along for a ride in the morning.

Specification
  • Battery 48V 14Ah Samsung 35E / LG MJ1 lithium battery
  • Range 30~45 Miles
  • Electric Bike Class Class 2 (configurable to Class 3)
  • Hub Motor 750W brushless geared motor, 1200W Peak
  • Charging Time 4 ~ 5 Hours
  • Total Payload Capacity 275lbs
  • Recommended Rider Heights 5'2" ~ 6'4"
  • Charger US standard 3.0A fast charger, UL Certified
  • Controller 48V / 22A 12-Tube
  • Display Adjustable-Angle, Backlit, Grayscale 3.2'' LCD
  • Frame Aluminium 6061
  • Lights Integrated front light and rear light with brake light, LED
  • Pedal Assist Intelligent 0~5 level pedal assist
  • Weight 72lbs
Components
Geometry
Manual & Assembly Videos

*Snapcycle has the right without notice to the consumer to substitute components of at least equal quality for advertised Snapcycle ebike components in the event of the unavailability of such advertised components.

Ebike Reviews

Customer Reviews

Based on 130 reviews
94%
(122)
6%
(8)
0%
(0)
0%
(0)
0%
(0)
R
Robert McElwain
First e-bikes II

Same comments as our other bike. My only regret is not getting a step thru like my wife’s. Really liked the sweet back handles on the step thru

R
Robert McElwain
First time ebikes

Finally got to take our new bikes for an initial run. Theses are our first e-bikes and it took a little bit getting used to. Rides like a champ. We went on a paved trail most of the way just so we could fine tune the adjustments on the seat and handlebars which we both loved. Easy to put together which I think it took more time to get the wrapping off than the assembly. Had one issue putting it together (my fault) so I sent a message to the company asking for help. They get right back to me with the solution and it was a easy fix. Great customer service. We love the bikes!! I’m 71 and my wife is 65.

d
david winchell
Nice bike

Nice bike

M
Mark Parvinen
Great purchase

The R1 step thru is everything I hoped for in an ebike! Assembly was a snap with the video guide. Customer service is outstanding! I am amazed at how smooth and comfortable the ride is. The power going up hills is a blessing to a guy who recently had back surgery. I would highly recommend this bike to anyone looking for one.

J
Joe Atkins
The Bearded Quality Engineer

From the Bearded Quality Engineer
I just unpacked and assembled the New Rev of the Snapcycle R1.
I will be putting together a video on youtube about this R1 rev. soon.
But for those wandering about what Snapcycle did with all of our suggestions? Well, they took notes and used a great deal of them (especially when related to safety).

1. Handlebar Stim is now adjustable, no more one size fits all.
2. The frame in the Rear Swing Arm has been is Stamps and Welded for more tensile strength (withstands more weight).
3. Hydraulic Breaks (front and back).
4. Upgrade of tires to Kenda's (wheel balancing would be beneficial to the quality or the ride).
5. Electric LED Integrated Taillight / Breaklight.
6. The Packaging is rock solid now. The box is in cognitive, pretending to be a large screen TV.

THINGS TO NOTE:
The nose of the seat is so long that (if you are a shorter stature person) the lowest portion of the High-Bar is not usable to rest you private parts over. Keep this in mind when ordering your bike. Although the High-Bar offers more tensile strength for us heavier built people, it also present an obstacle for those of us that are short in stature.
The handlebars on th R1 High-Bar are different then the handlebars on the R1 Step-through.

Review the pictures for Visual Aspects.

Frequently Asked Questions

Got more questions? Contact us

Where do you ship from?

All our bikes are shipped directly from our warehouse in California.



Can I test ride a bike?

Yes you can, but our test ride network is currently limited to a few states. You can check them out here.

Is the seat height adjustable?

Yes it is. We use a quick-release seat post clamp mechanism in all of our bikes, which makes for swift and simple adjustments.

Does your bike come in different colors?

At the moment our R1 and S1 series come in a single color, whereas the other models come in different colors. Please refer to their specific product pages for details. We are also looking to offer color variations for the S1 and R1 models in the near future, so stay tuned and keep an eye on this space!

Does your bike come in different sizes?

Presently, our bikes come in a single size. In general, most of them are suitable for riders between 5'3~6'4. You will have to refer to the respective product page of each model to find out the recommended rider height. If you are still not sure which bike suits you the best, you may drop us a message and we'll give you our personal recommendations.

Are your bikes waterproof?

Our bikes are water and dust resistant, rated IP54. This means that they can be ridden in the rain, but we would still advise against leaving them exposed to the elements. We would also recommend cleaning your bikes with a damp cloth instead of hosing them down, to prevent damage to any components.

Where can I get my bike serviced?

Being a consumer direct business, we currently do not have physical service centers available. We do, however, have retail partners that stock spare parts and work with us closely to provide aftersales support for our customers. Alternatively, we can provide remote support via video calls, more information can be found here.
