Genuine replacement fast charger for Snapcycle e-bikes. Choose 3A for the quickest turnaround, or 2A for a gentler, cooler charge.
Specifications
Input: 100–240 VAC, 50/60 Hz
Output: 54.6 V DC — 3.0 A (163.8 W) or 2.0 A
Connector: DC 5.5 × 2.1 mm barrel — the plug your Snapcycle uses
Certification: UL listed (cULus) and CE

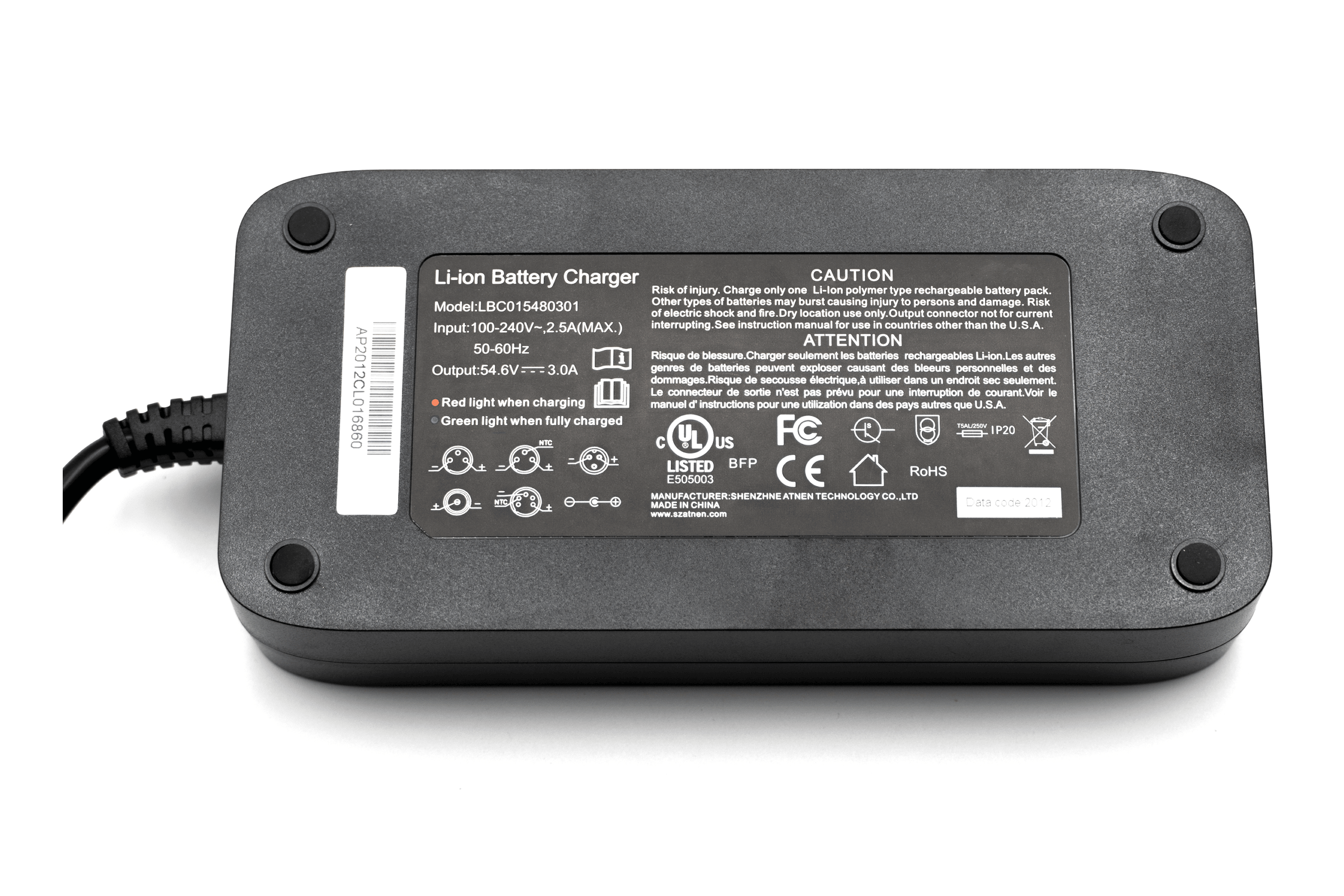

Indicator: red while charging, green when fully charged
Protection: auto shut-off, over-current, over-voltage, over-temperature, short-circuit and reverse-polarity
In the box

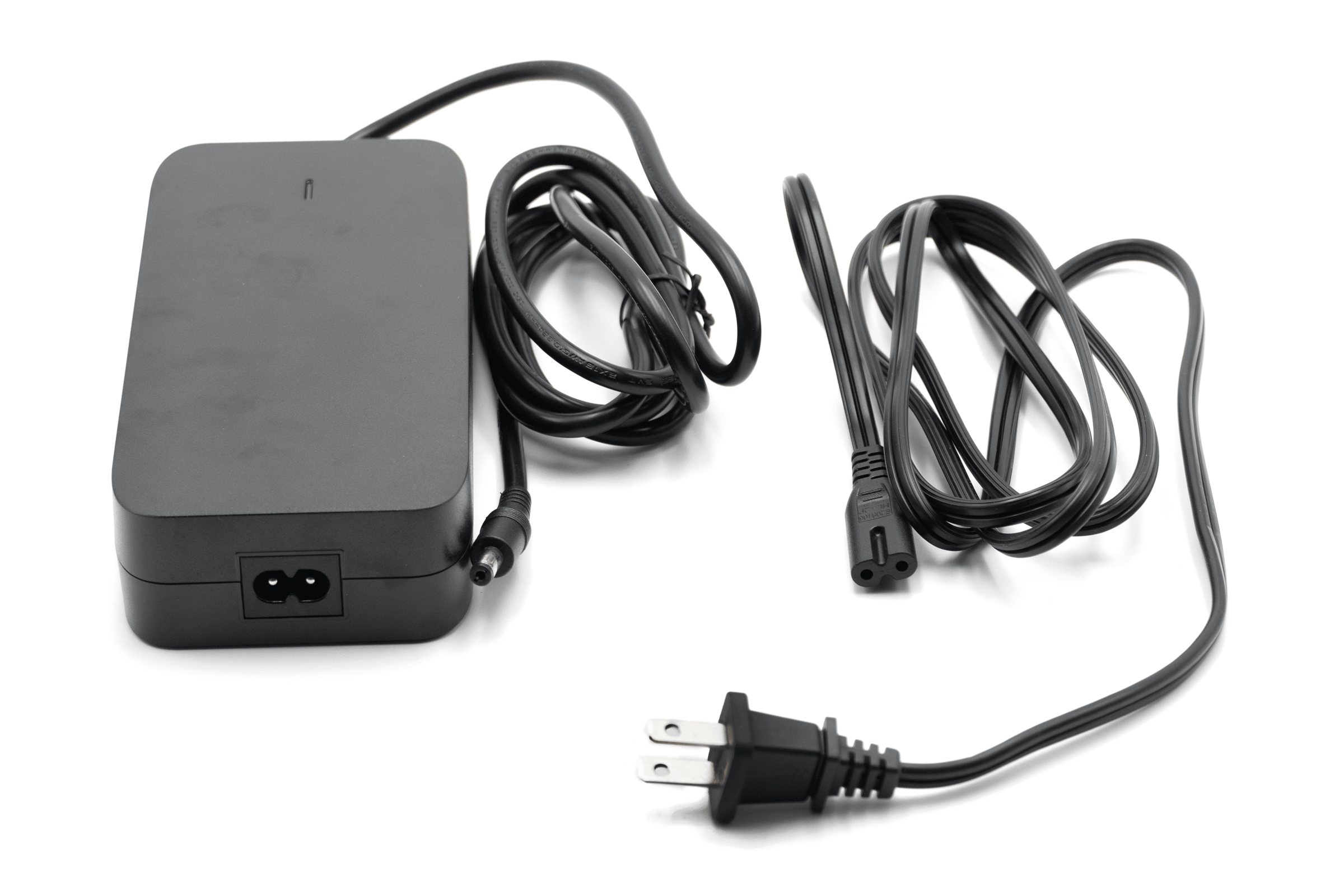

3A: charger unit · detachable US power cord · DC 5.5 × 2.1 mm output lead · XLR and 3-pin adapters (for other 48 V bikes) · drawstring storage pouch
2A: charger unit with attached US power cord · DC 5.5 × 2.1 mm plug (the one your Snapcycle uses) · XLR, 3-pin and RCA adapter tips (for other 48 V bikes)
Compatible with these 48 V Snapcycle models — Eagle, Storm, Infinity, Pegasus, Stinger, S1, R1 and R1 Pro.
Free shipping within the contiguous United States.
Use only with 48 V (13S) lithium battery packs. Do not use on 36 V or 52 V batteries — always match the charger to your battery voltage.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Snapcycle fast charger: specs and FAQ
Snapcycle 48V fast charger specifications
| Versions | 3A or 2A |
|---|---|
| Input | 100–240 VAC, 50/60 Hz |
| Output | 54.6 V DC; 3.0 A (163.8 W) or 2.0 A |
| Connector | DC 5.5 × 2.1 mm barrel plug |
| Battery type | 48 V (13S) lithium-ion packs only |
| Charge indicator | Red while charging, green when full |
| Protection | Auto shut-off, over-current, over-voltage, over-temperature, short-circuit, reverse-polarity |
| Snapcycle models listed as compatible | Eagle, Storm, Infinity, Pegasus, Stinger, S1, R1, R1 Pro |
| In the box (3A) | Charger, detachable US power cord, DC 5.5 × 2.1 mm output lead, XLR and 3-pin adapters, storage pouch |
| In the box (2A) | Charger with attached US power cord, DC 5.5 × 2.1 mm plug, XLR, 3-pin and RCA adapter tips |
Snapcycle fast charger FAQ
Which Snapcycle e-bikes does this charger fit?
It is a 48 V charger with a DC 5.5 × 2.1 mm plug, listed as compatible with the Snapcycle Eagle, Storm, Infinity, Pegasus, Stinger, S1, R1 and R1 Pro.
I have a Snapcycle S1 or Pegasus Lite. Will this charger work?
The S1, yes: its battery uses the same DC 5.5 × 2.1 mm charging port and ships with a 54.6 V 3.0 A charger, so the 3A version is a direct match. The Pegasus Lite is also a 48 V bike and ships with a 2.0 A charger; before you order for a Pegasus Lite, email service@snapcycle.com a photo of your bike's charging port so we can confirm the plug matches.
Should I choose the 3A or the 2A charger?
The 3A version charges faster; the 2A version charges more gently and runs cooler. For reference, Snapcycle lists 4–5 hours for the Storm and S1 with a 3A charger and 7–8 hours for the Pegasus Lite with a 2A charger. Actual time depends on battery size and how empty it is.
Can I use this charger on a non-Snapcycle e-bike?
Only on 48 V (13S) lithium battery packs with a matching plug. The 3A version includes XLR and 3-pin adapters, and the 2A version includes XLR, 3-pin and RCA tips. Never use it on 36 V or 52 V batteries; always match the charger to your battery voltage.
How do I know when my battery is fully charged?
The charger light is red while charging and turns green when the battery is full. The charger also shuts off automatically.
What safety protections does the charger have?
Auto shut-off plus over-current, over-voltage, over-temperature, short-circuit and reverse-polarity protection.
Where does Snapcycle ship the charger?
Shipping is free within the lower 48 states and Washington, D.C. We currently don't ship to Alaska, Hawaii, Puerto Rico, P.O. boxes or APO/FPO/DPO addresses.
Can I return the charger?
Yes. You can return an unused charger in its original packaging within 14 days of delivery for any reason; for returns that are not caused by a quality problem, you pay the return shipping. If it arrives damaged or defective, email service@snapcycle.com within 14 days with photos and we send a prepaid return label and a replacement.
Specs are taken from the charger's product label and Snapcycle's model spec sheets. Updated November 2026.
